sino galvo marking scan head SG7310E Galvanometer Scanner For Laser Marking Machine

sino galvo marking scan head with two red beam points SG7310E
Availability:
Quantity:
  • SG7310E

  • sino galvo

Product Description

The model SG7310E galvo scanner has the good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability, the overall performance of SG7310E has reached the international leading level in this field.

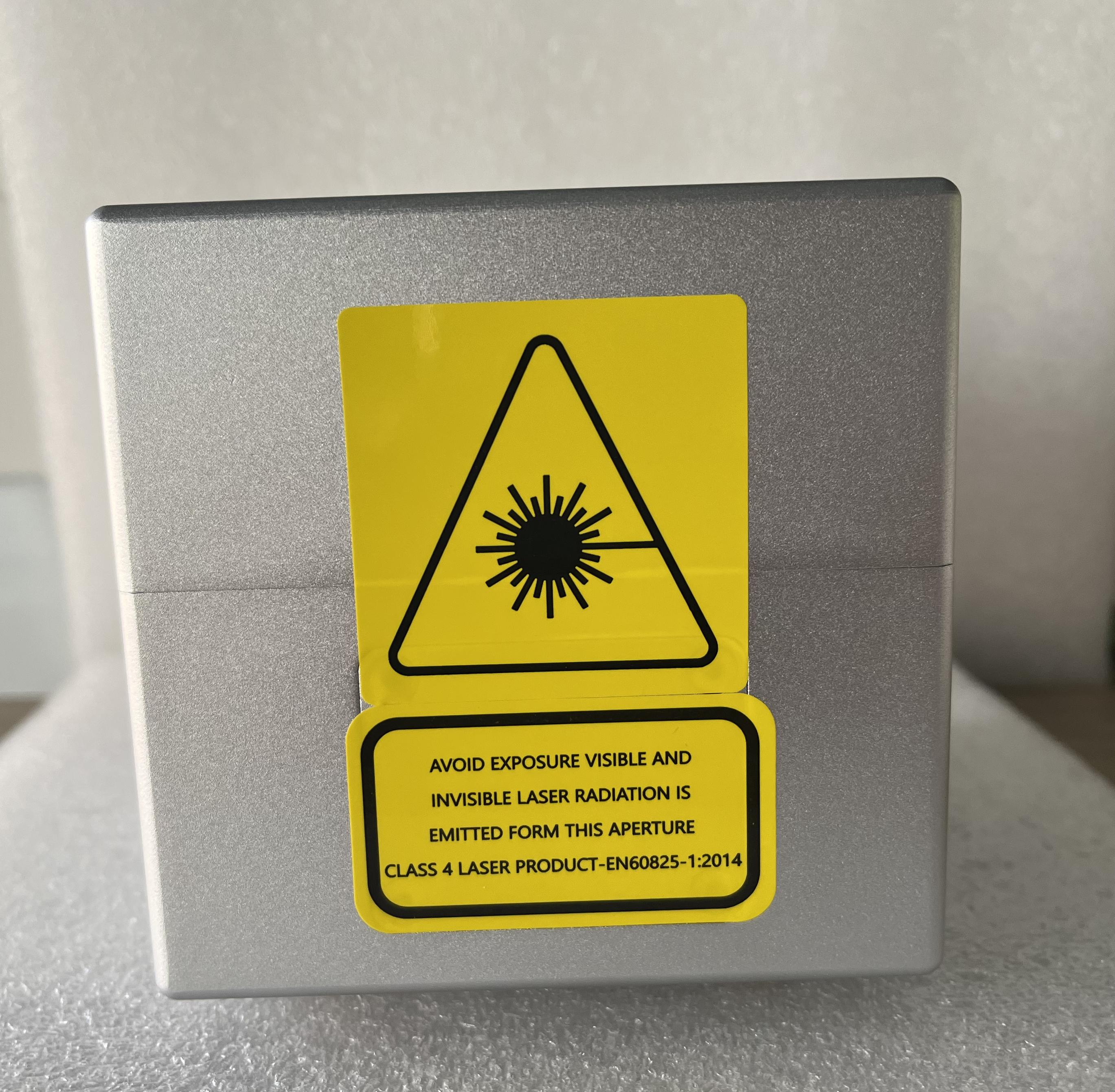

Marking scan head with two red beam points SG7310Esino galvo marking machine scan head SG7310Esino galvo marking machine scan head SG7310E power supplier


The advantages are as following:

■ Adopted the photoelectric sensors which imported from America, and owned the proprietary intellectual property rights.

■ Differential photoelectric sensor for accurate detection of motor rotor position, good linearity, lower drift, high resolution and repeat positioning.

■ Accurate load design for 10 mm mirrors, high accuracy of motor assembly, reasonable structure, very small static friction coefficient and zero offset, all ensured the best dynamic characteristics for the whole system.

■ Drives with advanced detection ability of position and speed, greatly improved the dynamic response performance and scanning speed of the whole system.

■ Design of overload, over-current and reverse connect protection, makes the system running more reliable.

■ The whole system adopted the optimization Designing of electromagnetic compatibility, with high signal-to-noise ratio and strong anti-interference ability.

■ This scanner system solved the common problems of motor temperature drift, signal interference and zero drift, etc.



SG7310E Technical Parameters

Speed

Marking Speed(1)

4000mm/s

Writing Speed(2)

408cps

Step Response Time(1% of   full scale)

350us

Step Response Time(10% of   full scale)

970us

Tracking Error Time

≤172us

Precision and Error

Linearity

99.9%

Repeatability (RMS)

<8μRad

Gain Error

<5mRad

Zero Offset

<5mRad

Long-term Drift Over 8   Hours

<0.5mRad

Scale Drift

<40PPM/℃

Zero Drift

<15μRad/℃

Wavelength(3)

10600nm/1064nm/355nm

Power and Signal

Input Voltage

±15VDC

Rated Current

2A

Interface Signal

Digital

XY2-100

Analog

±5V

Machinery Scan Angle(4)

±15°

Working Current, Temperature, Dimension

Working Temperature

0℃--45℃

Storage Temperature

-10℃--60℃

Aperture

10mm

Galvanometer Scanner   Dimension (LxWxH)

118.5x96.5x93.6mm

Galvanometer Scanner Weight

≈1.65Kg

Note: The above data are tested after 30 min warm-up

(1) With F-theta objective, F=160mm, marking 2mm height single character

(2) With F-theta objective, F=160mm, marking 1mm height single character per second

(3) Special wavelength coating film can be customized

(4) If any special requirement, customization is available. Factory default value is ±11°
