Laser cutting Single SP Nozzle D28 for Precitec Procutter cutting head

Laser cutting Single SP Nozzle D28 for Precitec Procutter cutting head
Availability:
Quantity:
Inquire Add to Basket

  • SP Nozzle

Product Description

Laser cutting Single SP Nozzle D28 for Precitec Procutter cutting head


Product Description:

SP Fast Laser Cutting Nozzles D28 H15 M11
  • High temperature resistance, less anti-slag and High processing accuracy, no pressure for cutting thick plates.
    Smooth inner wall and smooth air flow and Fast cutting speed and high surface finish.
    Surface anti-oxidation treatment, long service life.

Specification：
Material
T2 Red Copper
Height
15mm
Diameter
28mm
Thread
M11
Aperture
1.2/1.3/1.4/1.5/1.6/1.7/1.8
Layer
Single
Chrome Plating
Can be customized

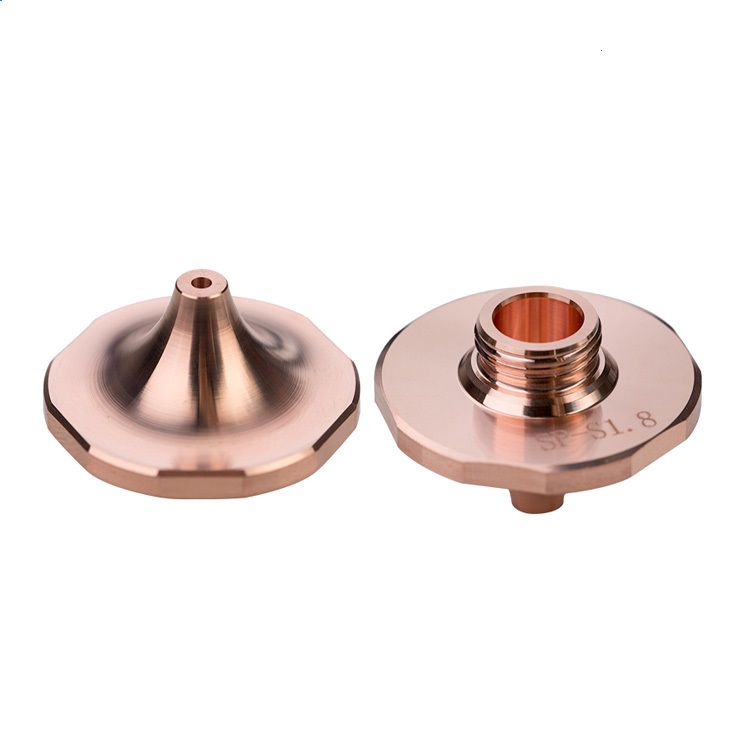

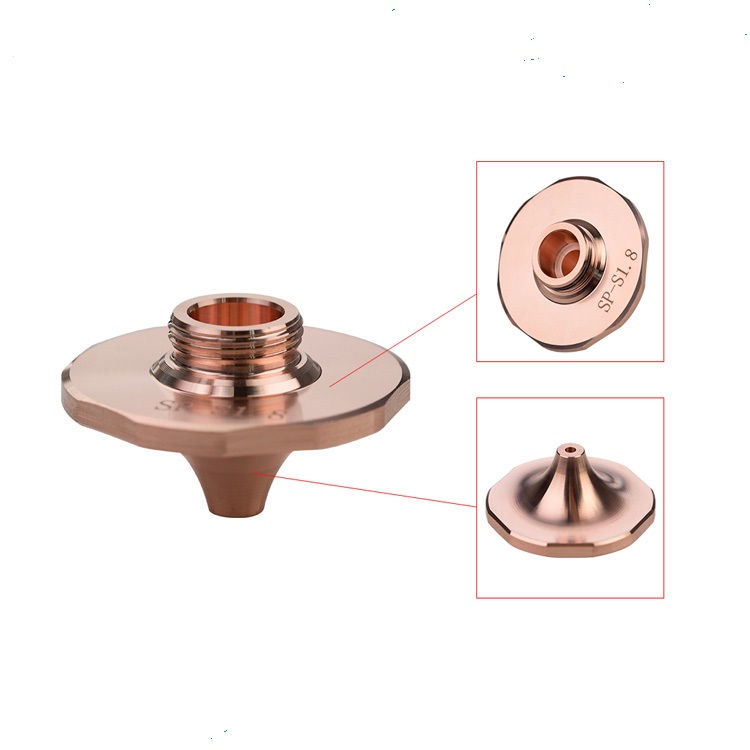

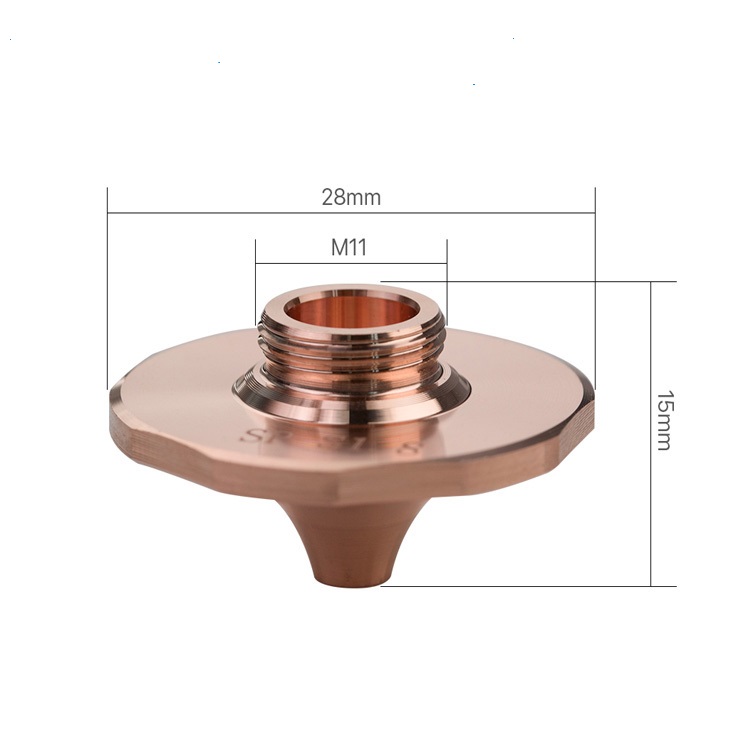

Product Photo：

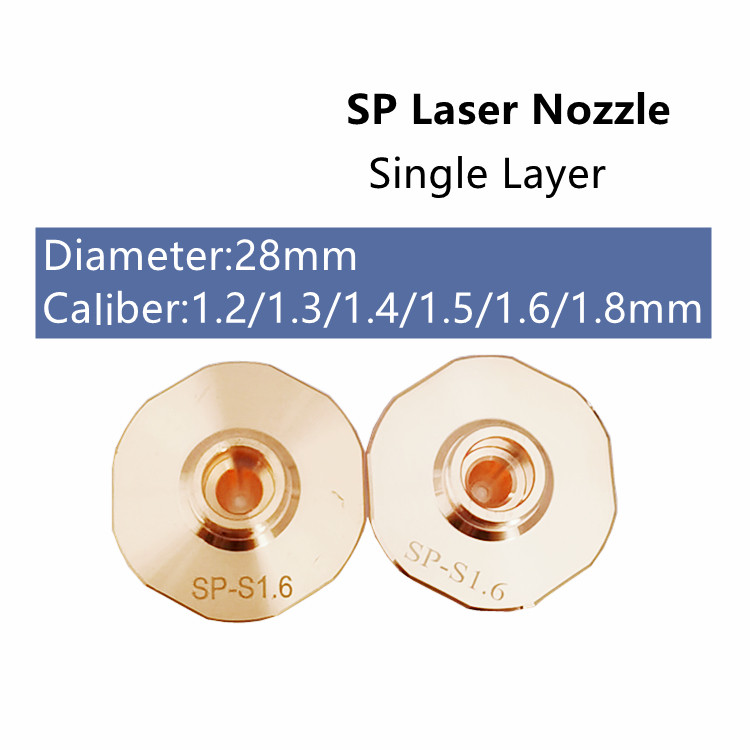

Nozzle (6)Nozzle (8)Nozzle (11)Nozzle (10)




Laser Cutting Nozzle (1) Laser Cutting Nozzle (2)


Packaging Process：

One box for every ten tablets,less than ten tablets are packed in plastic boxes..
