The Raycus laser has higher photoelectric conversion efficiency (>30%), better and more stable beam quality, and stronger anti-high anti-reflective ability to ensure a more stable and precise cutting effect in thick plate cutting.
The product is suitable for a variety of applications: cutting, welding, drilling, medical device processing, etc. The cut plate has a narrow slit and a bright cross-section.
Product Features
1. High electro-optical conversion efficiency
2. Resistant to high reaction
3. Efficient sheet cutting
4. Output fiber length can be customized
5. Maintenance-free operation
6. Wide modulation frequency range

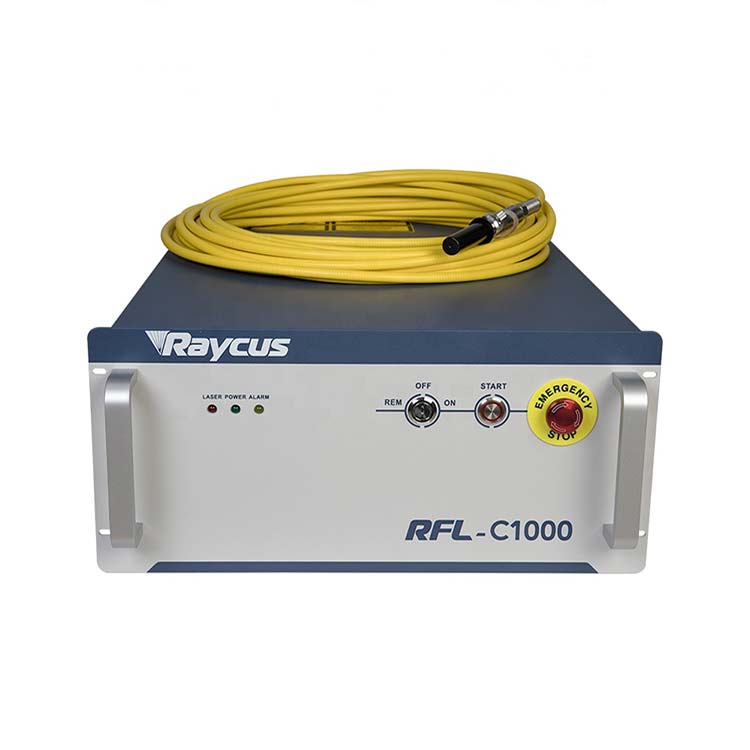

| Type | RFL-C1000 |
| Average output power（W） | 1000 |
| Center wavelength (nm) | 1080±5 |
| Operating mode | CW/Modulate |
| Maximum modulation frequency（KHZ） | 5 |
| Output power stability | ±1.5% |
| Red light | Yes |
| Output connector | QBH（customizable） |
| Beam quality（M2） | 1.3（25 μm） |
| Polarization state | random |
| Output fiber length（m） | 20（customizable） |
| Input power | 200-240 |
| Control mode | externalRS232/externalAD |
| Power adjustment range | 10-100 |
| Power consumption | 3600 |

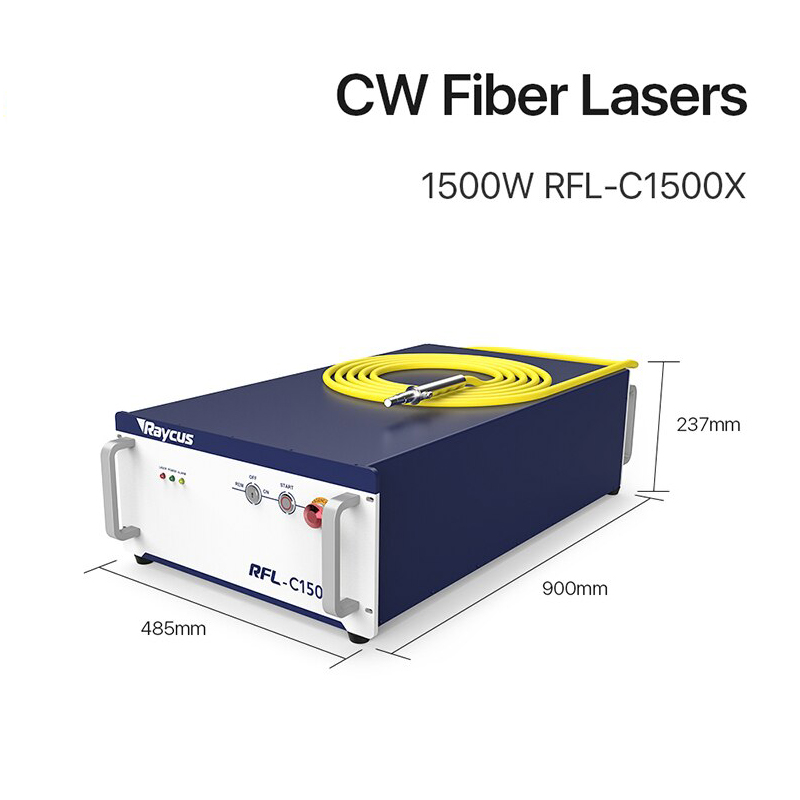

| size（mm）
Width*height*depth | 485*748*237（With handle） |
| weight（KG） | ＜50 |
| cooling method | Water Cooling |
| Operating temperature（℃） | 10-40 |
