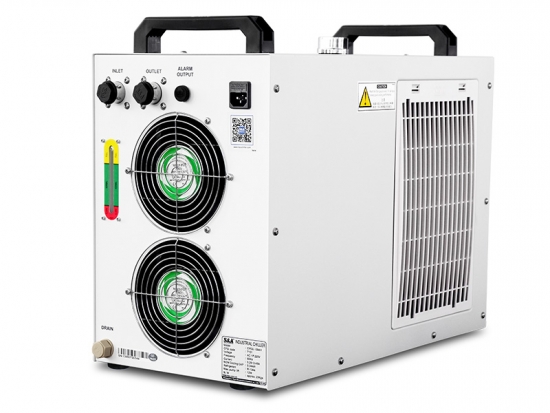

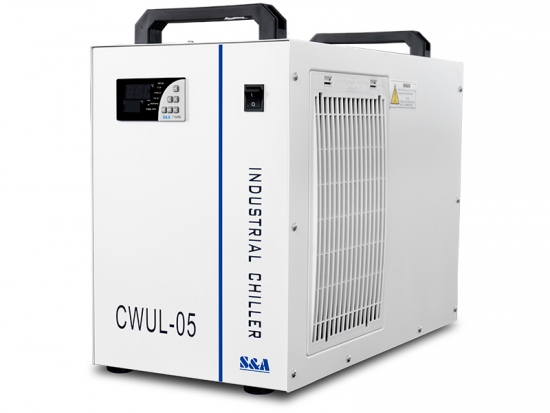

High Precision UV Laser Water Chillers CWUL-05 With Long Life Cycle
S&A Teyu CWUL-05 water chiller is applied for cooling 3W-5W UV laser. It has 2 temperature control modes as constant temperature and intelligent temperature control mode.
Generally speaking, the defaulted setting for the temperature controller is intelligent temperature control mode. Under intelligent temperature control mode, the water temperature will adjust itself according to the ambient temperature. However, under constant temperature control mode, users can adjust the water temperature manually.
High precision water chillers features
1. With environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.2℃ precise temperature control;
4. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE approval; RoHS approval; REACH approval;
7. Optional heater and water filter.
THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.
UV water chiller units specification
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
PRODUCT INTRODUCTION
Independent production of sheet metal, evaporator and condenser
Adopt IPG fiber laser for welding and cutting sheet metal.
Temperature control accuracy can reach ±0.2°C.
Ease of moving and water draining.
The firm handle can help move the water chillers easily.

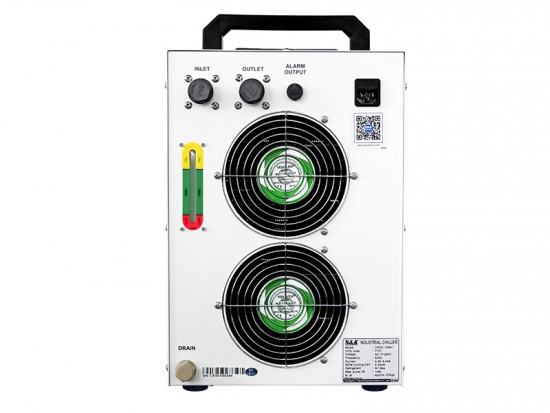

Inlet and outlet connector equipped
Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.
Cooling fan of famous brand installed.
Level gauge equipped.
Cooling fan with high quality and low failure rate.

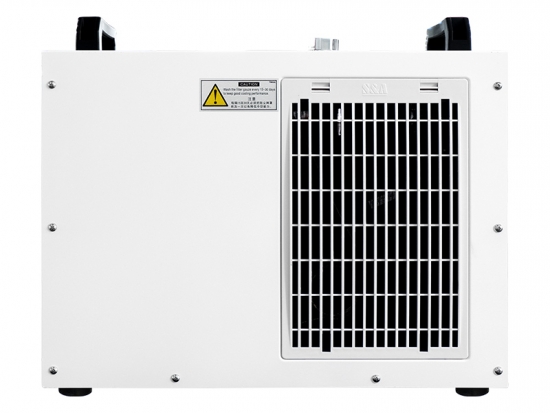

Customized dust gauze available and easy to take apart.
TEMPERATURE CONTROLLER PANEL DESCRIPTION
The intelligent temperature controller does not need to adjust the controlling parameters under normal circumstance. It will self-adjust controlling parameters according to room temperature for meeting equipment cooling requirements.
User also can adjust the water temperature as needed.
Temperature controller panel description：
Alarm function
(1) Alarm Display:
When alarm occurs, the error code and the temperature will be alternately displayed.
(2) To suspend the alarm:
In alarming state, the alarm sound could be suspended by pressing any button, but the alarm display remains until the alarm condition is eliminated.
ALARM AND OUTPUT PORTS
In order to guarantee the equipment will not be effected while abnormal situation happens on the chiller, CWUL series chillers possess alarm protection function.
1. Alarm output terminals and wiring diagram.
2. Alarm causes and working status table.
Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 5A, working voltage less than 300V.
