Laser SMT Template High Precision Cutting Machine LDS Cutting SC-G6060

G6060 is our new generation of SMT laser template cutting machine.There is a significant improvement in both performance and user-friendly operation design which compared with the previous models. performance is much higher than imported machines.

Availability:
Quantity:
  • SC-G6060

  • Raycus

Product Description

SMT Template High Precision Laser Cutting Machine LDS Cutting SC-G6060


The new generation of laser SMT template cutting machine has been significantly improved compared with the previous models in terms of performance and humanized operation design. According to the needs of market customers, the overall performance of the equipment has been improved to a new level. While improving the cutting speed, it also ensures excellent cutting quality. It can be said that the performance can be completely comparable to that of foreign imported equipment, and the cost performance is far much higher than imported machines.


Application materials:

Mainly used for cutting carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, brass, copper, silicon steel sheet, ceramics and other materials.


Technical Prameters:

Model:
G6060 G6565
Laser Power: 50W 100W
Wavelenth: 1070nm 1070nm
Beam quality: M²<1.1
Working area: 600mm*600mm  650mm*650mm
Maximum Clamping size 650mm*720mm
Cutting thickness <0.3mm <1mm
Cutting speed-pad/h 19200
24000
Overall dimension 1640mm*1380mm*1500mm
Weight 2200kg
Repeated positioning accuracy ±0.002
Power supply
1P-AC220V
Unit Power 2.5kw
Upper computer Adavantech
Operating software SmartCut
Cut document format LMD、CNC、DXF
Auxiliary cutting gas Industrial oxygen 8-10Kg pressure, compressed air 16Kg pressure
Cutting bed
Natural Marble

Note:The laser power of the above models can be selected and ordered according to customer needs.


Advanced Features:

  1. Adopt iron-core linear motor dual-driver structure, high inertia and large thrust, and the maximum acceleration can reach 2.0G;

  2. Imported IPG fiber laser, stable output power, long life, maintenance-free, vertical and smooth processing hole wall, to ensure the stability of the processing process;

  3. Using the driver imported from the United States, the advanced adjustment and tuning algorithm greatly improves the cutting performance and ensures the processing accuracy;

  4. The whole machine adopts natural marble as the base structure, which is safe and stable;

  5. Equipped with high-precision grating ruler full closed-loop system, real-time feedback, reducing repeated positioning errors;

  6. Low energy consumption, the power consumption of the whole machine is about 2.5KW/h, and the use cost is low.



Cutting examples:

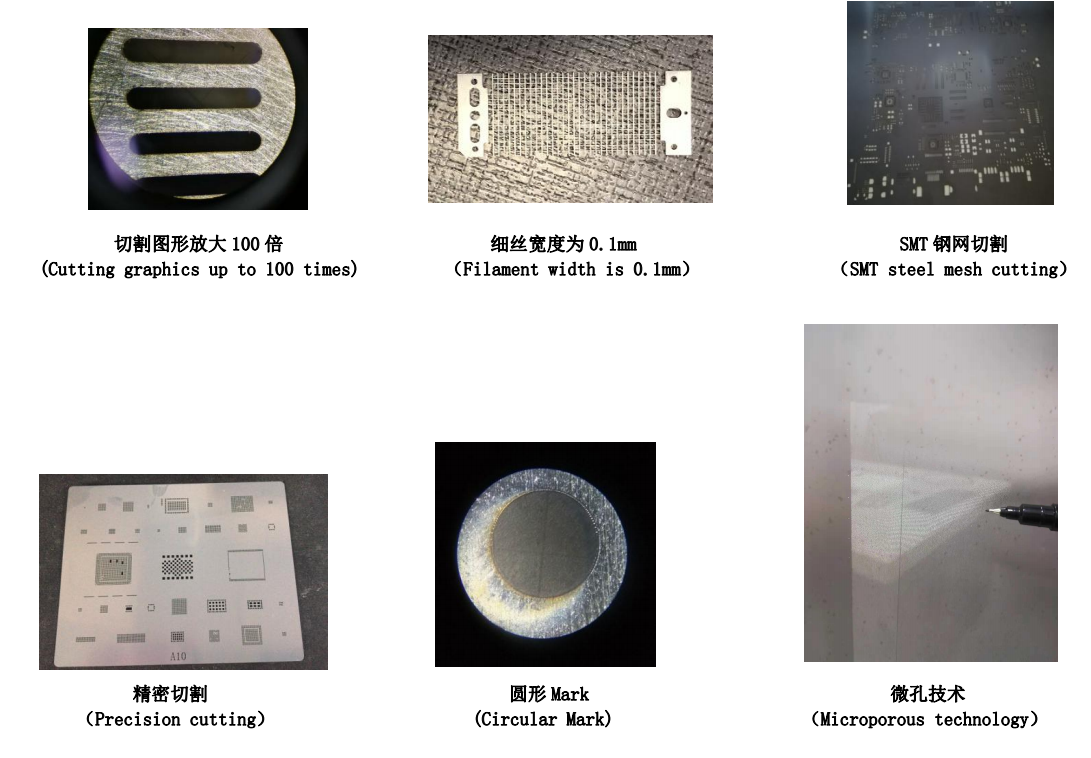

SMT laser template cutting machine in highly speed and precision in ss

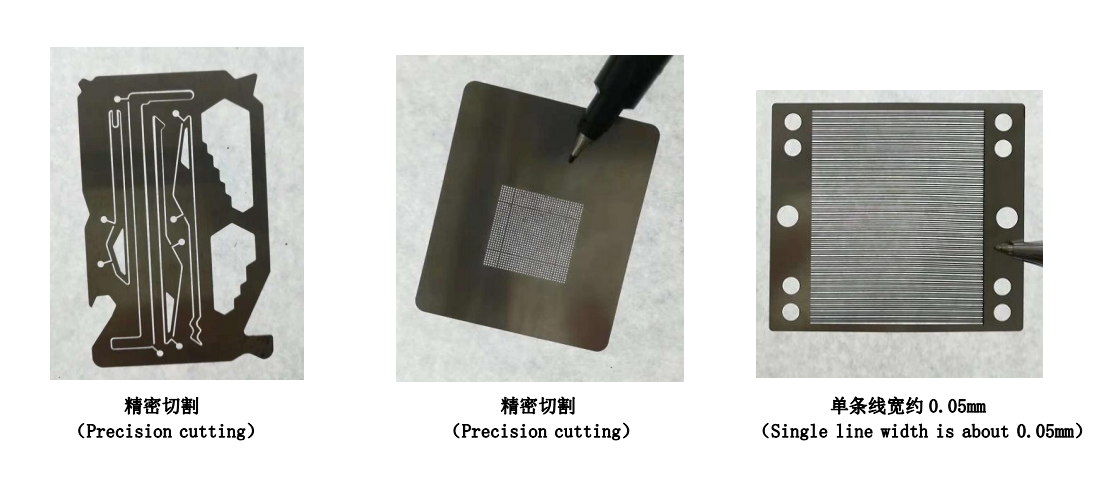

SMT laser template high precise cutting machine
