Raycus 30KW Multi Module CW Fiber Lasers for laser Cutting and laser Welding

The Multi-module CW Fiber Lasers developed by Raycus ranges from 4,000W to 30kW, with high electro-optical conver-sion efficiency, excellent beam quality, high energy density,wide modulation frequency, high reliability, long service life,maintenance-free operation and other advantages. The product can be widely applied in welding, precision cutting,cladding, surface processing, 3D printing and other fields. Its excellent optical output performance make it easy to be integrated with robots for flexible manufacturing and 3D processing .
Availability:
Quantity:
  • RFL-C

  • Raycus

Product Description

Raycus 30KW Multi Module CW Fiber Lasers for laser Cutting and laser Welding

Introduction:

The Multi-module CW Fiber Lasers developed by Raycus ranges from 4,000W to 30kW, with high electro-optical conver-sion efficiency, excellent beam quality, high energy density,wide modulation frequency, high reliability, long service life,maintenance-free operation and other advantages. The product can be widely applied in welding, precision cutting,cladding, surface processing, 3D printing and other fields. Its excellent optical output performance make it easy to be integrated with robots for flexible manufacturing and 3D processing .

Hfc8d36b8427e47c6888e98bd36a86cd87.jpg_960x960
Product Specifications:
Model
RFL-C10000TX
RFL-C12000TX
RFL-C15000TZ
RFL-C30000XZ
Average Output Power (W)
10000
12000
15000
30000
Central Wavelength(nm)
1080±5
1080±5

Max. Modulation

Frequency(kHz)

2
2
2
Operation Mode
CW / Modulate
CW / Modulate
Output Power Stability(%)
±1.5
±1.5
Red Light Indicated Power(mW)
0.5——1 0.5——1
BPP(mm.mrad)
<4
<4
<4 <6
Beam Delivery Optics
QD
QD
QD
QP
Delivery Cable Length(m)
20
20
20 30
Operation Voltage(V AC)

220±10%V AC、50 / 60Hz
380±10%V AC.50 / 60Hz
Control Method

RS-232/AD/Ethernet
Dimensions(W×H×D)(mm)
1200×960×1160
    1200×960×1160
    960×1500×1160
   1200×1600×1230
Weight(kg)
<450
<500
<6000
<900
Operating Temperature(℃)

10~40
Cooling Method

Water cooling

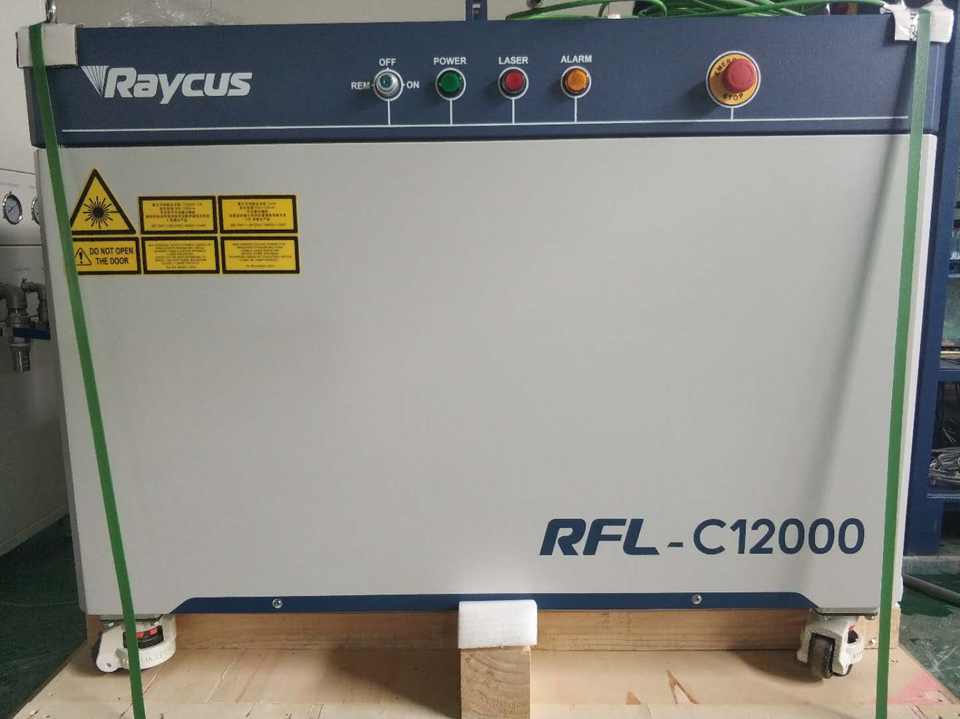

H4c49fa890ed942328fb850158c70d54a6.jpg_960x960

Typical Applications:

Cutting

Sintering

Surface Treatment

Welding

Cladding

3D Printing


Characteristic:

High Electro-optical Conversion Efficiency

Customized Output Fiber Length

Output Cable:QD/QP

Maintenance-free Operation

Wide Modulation Frequency Range

Small Size, Easy to Install
