High Power Multi Module Control Raycus CW 4000W 6000W 8000W Fiber Laser Source For Cutting Machine

Share to:

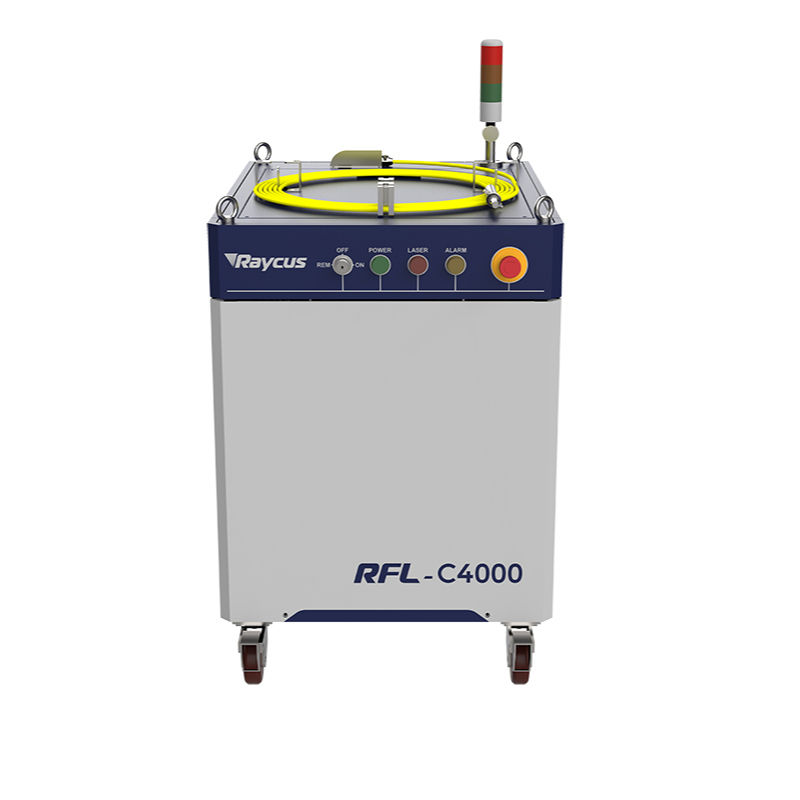

High Power Multi Module Control Raycus CW 4000W 6000W 8000W Fiber Laser Source For Cutting Machine

Name: High Power Multi Module Control Raycus CW 4000W 6000W 8000W Fiber Laser Source For Cutting Machine
Brand: Raycus
Rating: 5.0 (24 reviews)

The Multi-module CW Fiber Lasers developed by Raycus ranges from 4,000W to 30kW, with high electro-optical conver-sion efficiency, excellent beam quality, high energy density,wide modulation frequency, high reliability, long service life,maintenance-free operation and other advantages. The product can be widely applied in welding, precision cutting,cladding, surface processing, 3D printing and other fields. Its excellent optical output performance make it easy to be integrated with robots for flexible manufacturing and 3D processing .

Availability:

Quantity:



Inquire Add to Basket

Model:
RFL-C
Brand:
Raycus

Product Description

High Power Multi Module Control Raycus CW 4000W 6000W 8000W Fiber Laser Source For Cutting Machine

Introduction：

Product Specifications：

Model	RFL-C4000XZ	RFL-C6000XZ	RFL-C8000XZ
Average Output Power (W)	4000	6000	8000
Central Wavelength(nm)	1080±5
Max. Modulation Frequency(kHz)	5		2
Operation Mode	CW / Modulate
Output Power Stability(%)	±1.5
Red Light Indicated Power(mW)	0.5——1
BPP(mm.mrad)	＜4

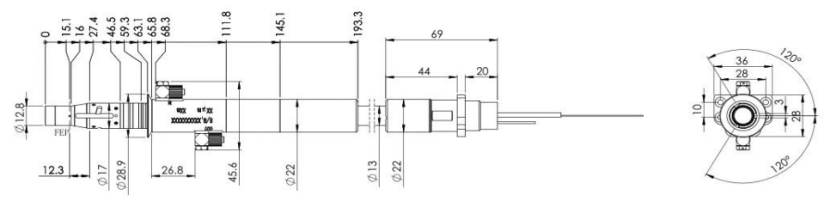

Beam Delivery Optics	QBH（ Customizable）		QD
Delivery Cable Length(m)	20	20	30

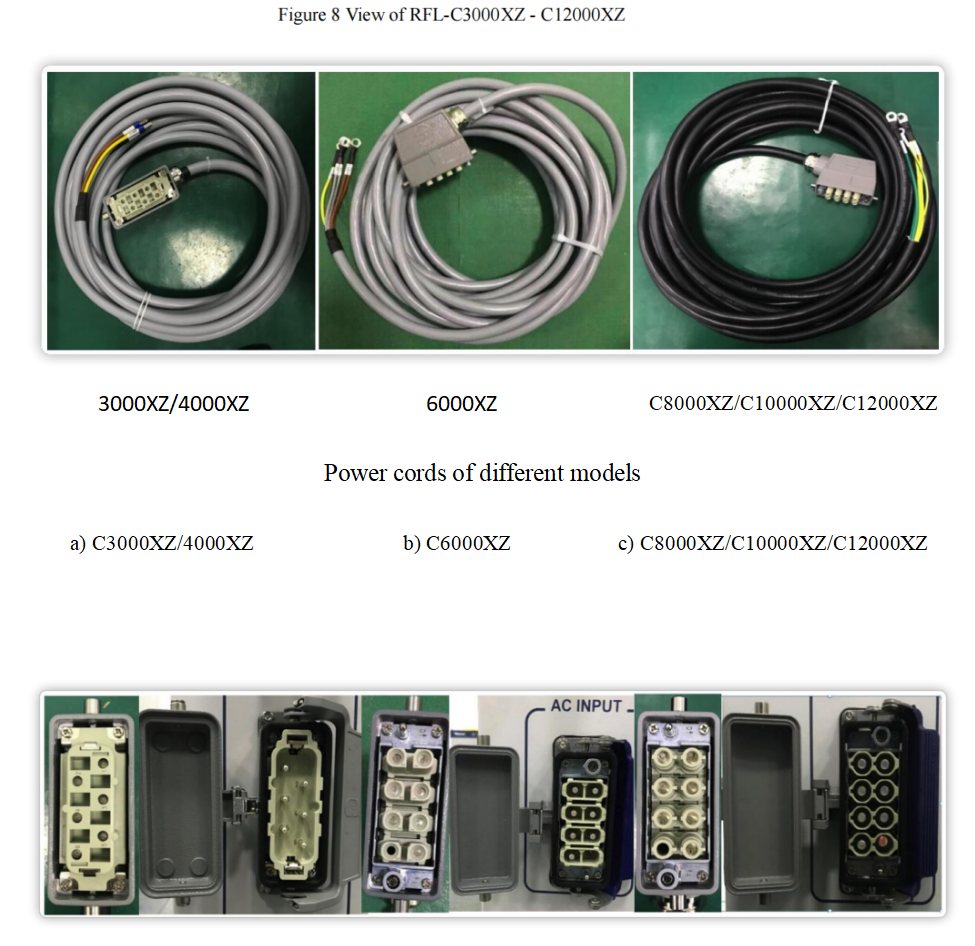

Operation Voltage(V AC)	220±10%V AC、50 / 60Hz		380±10%V AC.50 / 60Hz
Control Method	RS-232/AD/Ethernet

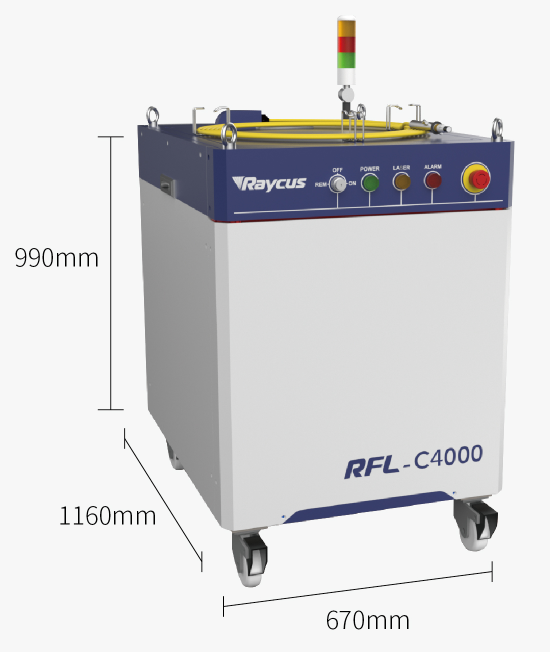

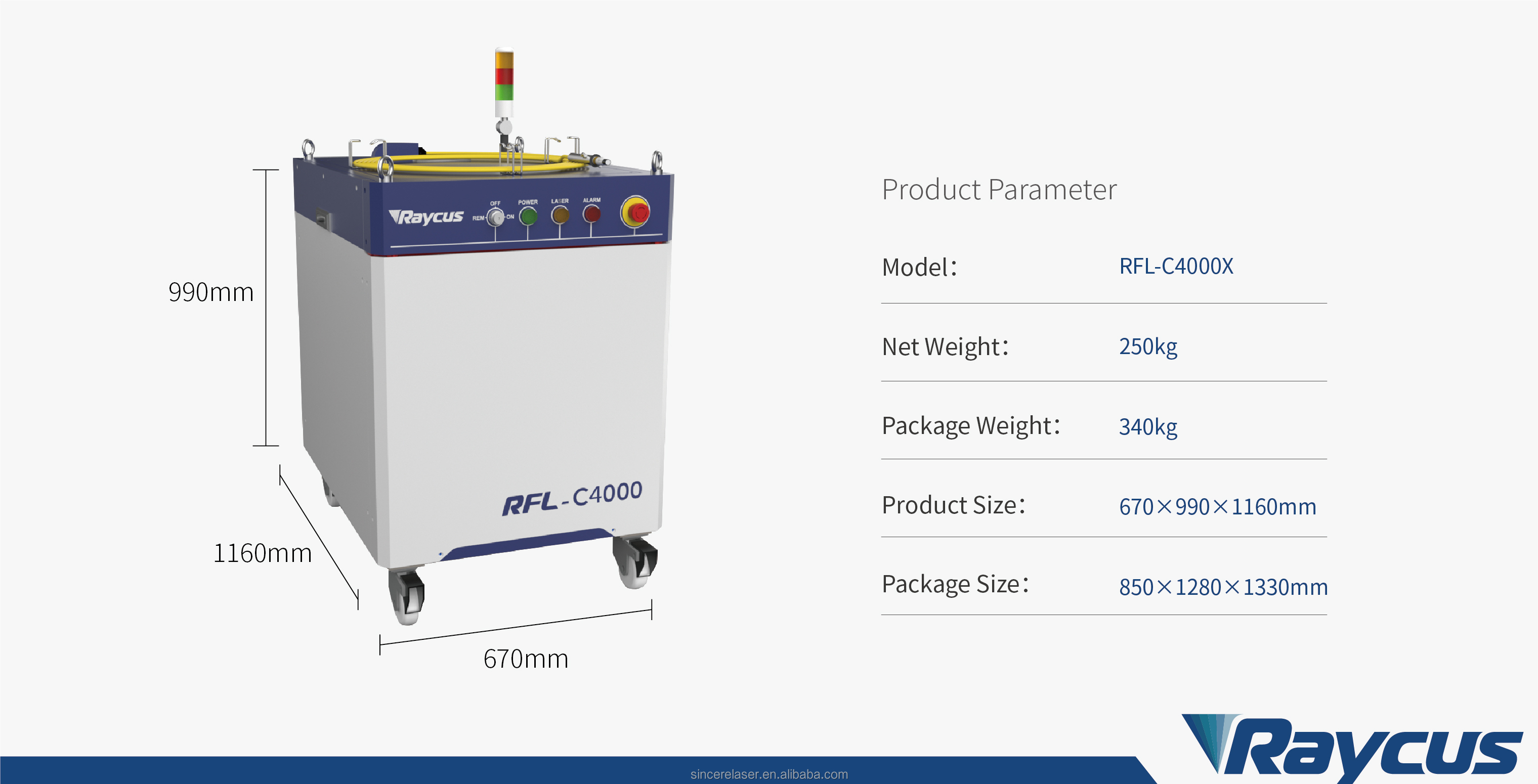

Dimensions(W×H×D)(mm)	670×990×1160	900×960×1160	900×960×1160
Weight(kg)	＜280	＜360	＜400
Operating Temperature(℃)	10~40
Cooling Method	Water cooling
