Raycus Single-module CW Fiber Laser Source RFL-C For Lazer Equipment Cutting And Welding

The third-generation single-module CW fiber laser developed by Raycus ranges from 300W to 12000W. The new generation has high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, high reliability, long service life and mainte-nance-free, etc. At the same time, it has an optimized optical fiber transmission system to ensure a more stable and precise cutting effect in thick plate cutting. These lasers can be applied to a variety of applications: cutting, welding, drilling, scribing and other fields. The cutting slit is narrow and the section is bright, which has obvious advantages over the same type of laser.
Availability:
Quantity:
  • RFL-C

  • Raycus

Product Description

Raycus Single-module CW Fiber Laser Source RFL-C For Lazer Equipment Cutting And Welding


Product Description
The third-generation single module CW fiber laser series developed by Raycus ranges from 300W to 3,000W, the new lasers has higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages.

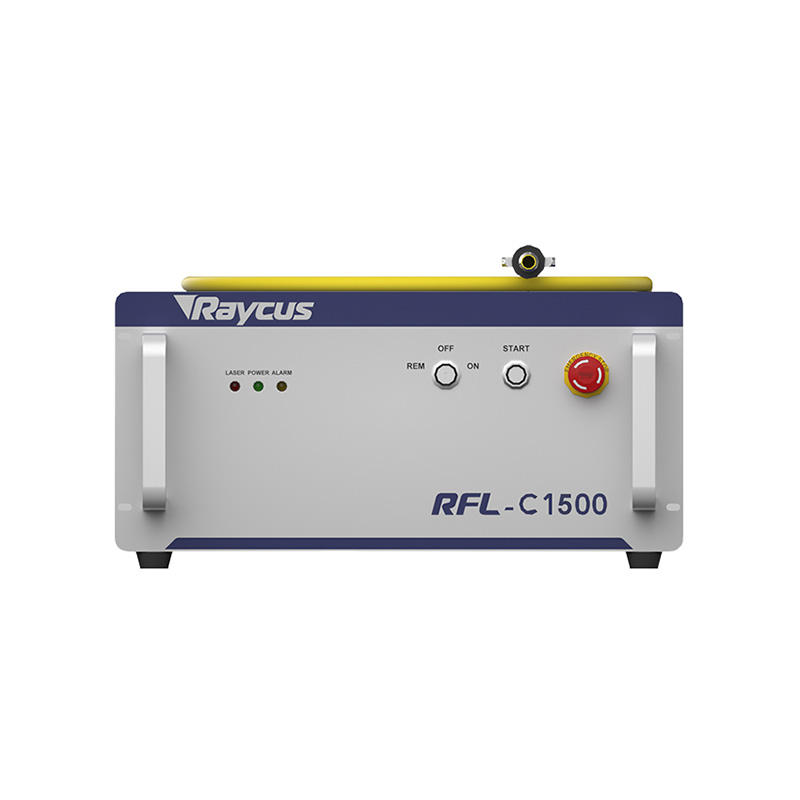

RFL-C1000RFL-C1500

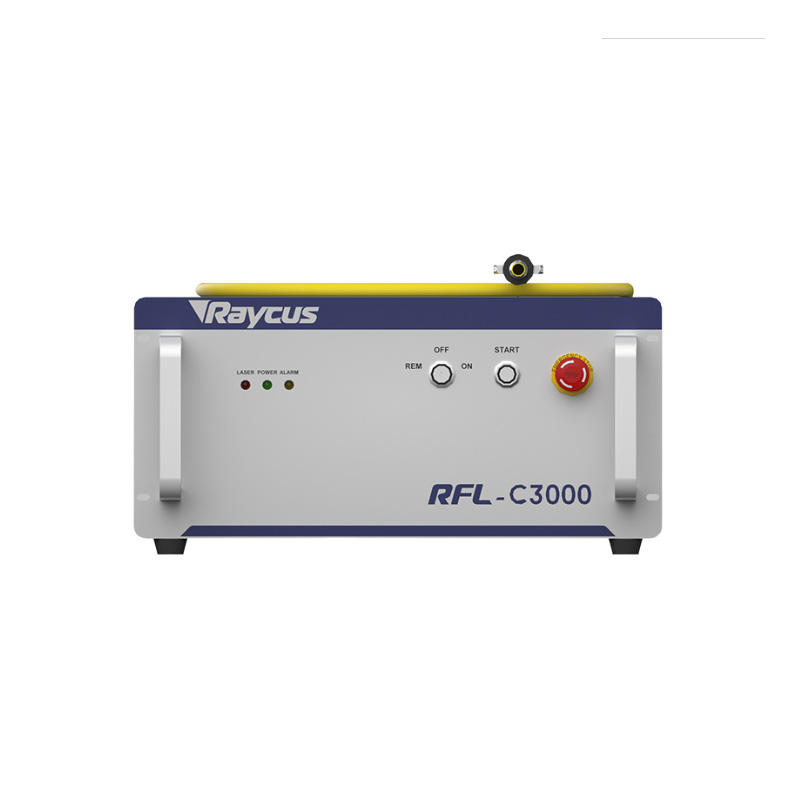

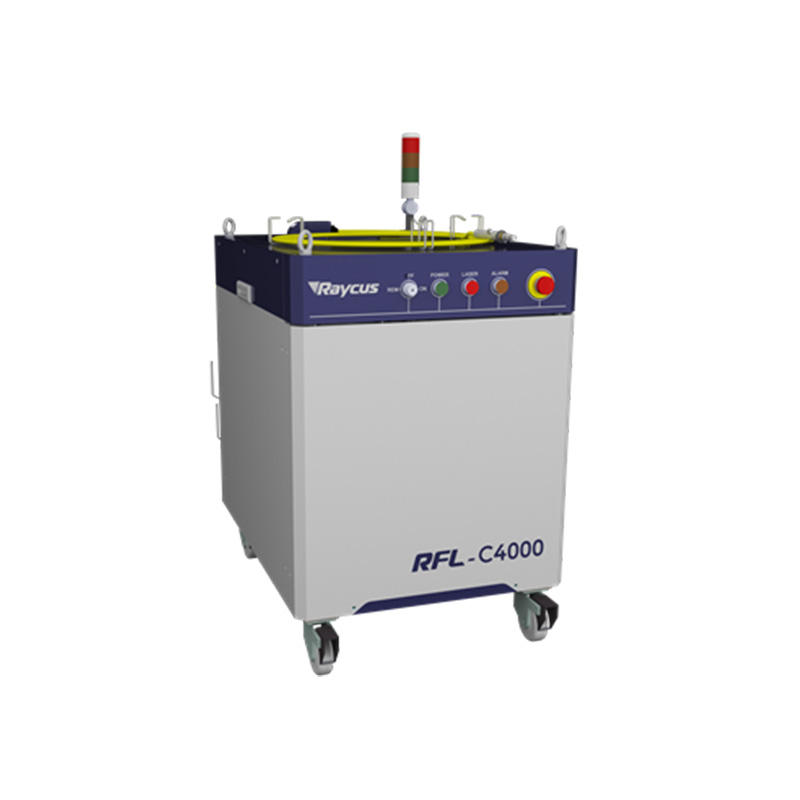

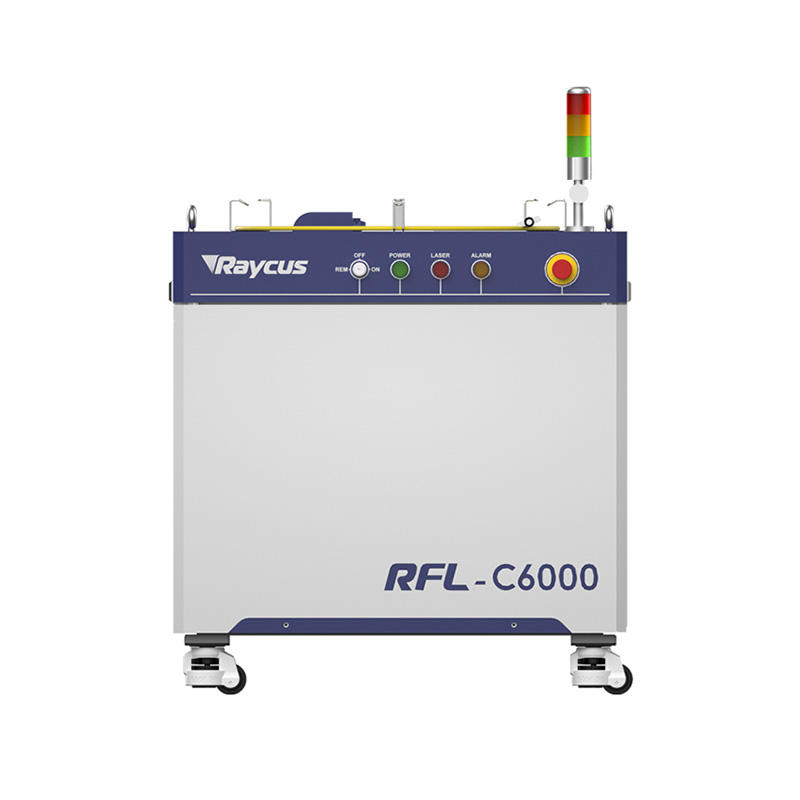

Model RFL-C300L RFL-C500 RFL-C750 RFL-C1000 RFL-C1500 RFL-C2000 RFL-C3000S RFL-C4000S RFL-C6600S RFL-C8000S RFL-C1000S RFL-C12000S
                                                                Optical Properties

Average Output

Power(W)

250 500 750 1000 1500 2000 3000 4000 6600 8000 1000 1200

Central

Wavelength(nm)

                                                        1080±5

Operation

Mode

                                              CW/Modulate

Max. Modulation

Frequency(kHz)

                              20
                                       5

Output Power

Instability (%)

                                                              ±1.5

Red Light

Indicated Power

(mW)

                                                              0.5~1
                                                                 Output Characteristics

Beam Delivery

Optics

                      QBH(Customizable) IQB(Customizable)   QBH(Customizable)
Beam Quality M² <1.1(25μm) 1.3(25μm) 5-7(50μm) 4.5-6 (50μm) 4-6(50μm)/9-12(100μm)

6-9(75μm)/

9-12(100μm)

Polarization

State

                                                    Random

Delivery Cable

Length(m)

15
20
                                                            Electrical Characteristics
Dimensions(mm)

485×237

×663

410×405×150

410×610

×150

414×686

×158

485×251

×900

447 ×250

×1102

560×1148×1269
Cooling

Air

Cooling

Water Cooling

Operating

Temperature(℃)

10-40

Typical Applications:

Precision Cutting

Metal Welding

Sheet Metal Piercing

Metal Carving

Surface Treatment


Characteristic:

High Electro-optical Conversion Efficiency

High Reversion Resistance

Sheet Cutting Efficiency

Optional Air Cooling or Water Cooling

Maintenance-free Operation
