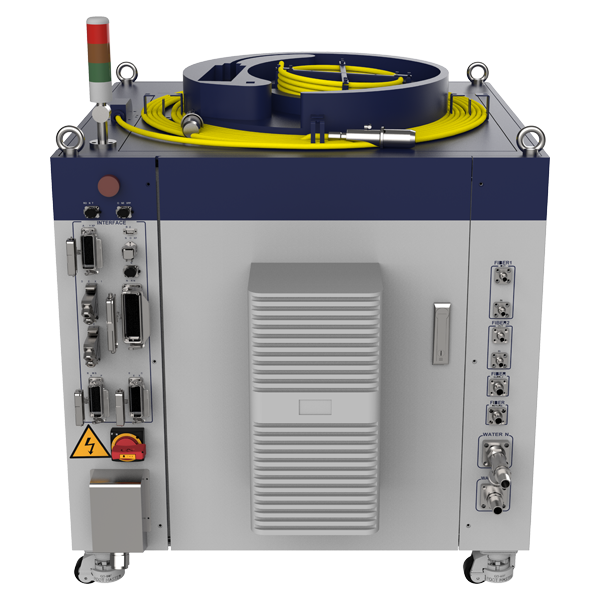

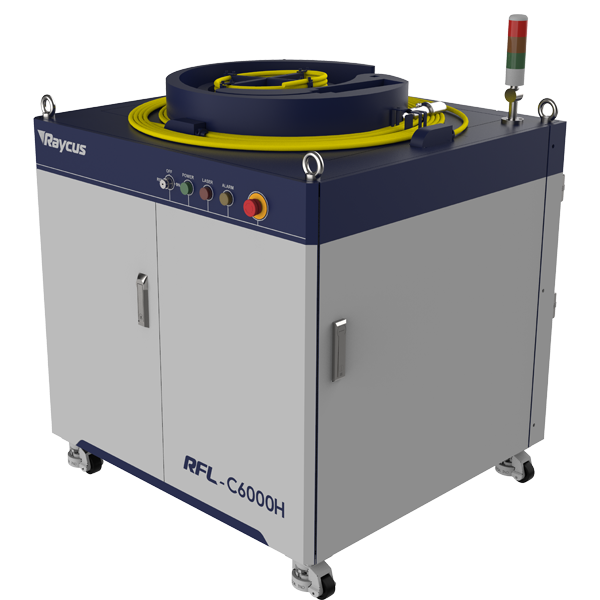

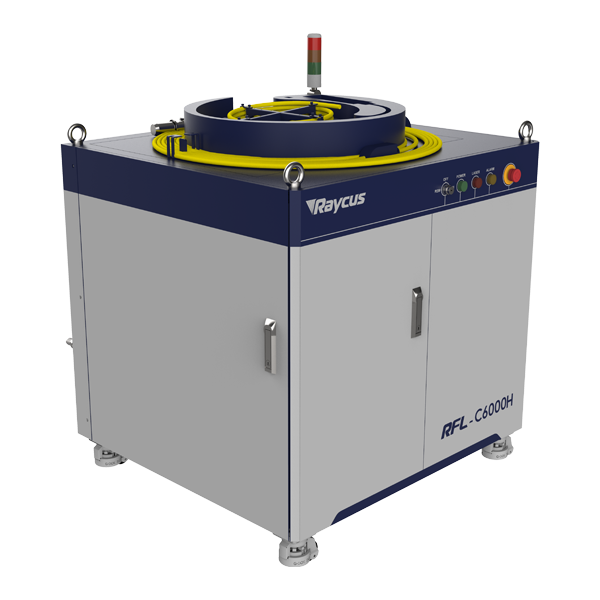

Raycus High Power Fiber Laser with Shutter for Automotive welding
Raycus high-power fiber laser with shutter can make one laser perform cutting, welding, drilling and cladding at the same time. The switching of equipment power and transmission fiber only takes a few milliseconds, which can significantly reduce the user's investment cost in equipment and improve processing efficiency.
Product Specifications：
Max. power:12kW
Input core diameter:100μm
Output core diameter:200-1000μm
Max.NA:0.14
High transparent coating:1030-1090nm
Optical fiber interface type:QBH/QD
Cooling method:Water cooling
Technical Advantages:
1. Single -way coupler, 2-way and 4-way time sharing fiber to fiber swtich
2. Coupling efficiency ≥96%
3. Short switching time, <45ms
4. Fast fiber fuse protection
5. Equipped with safe mechanical, electrical, control and monitoring systems
6. The beam switching device is reliable and can achieve thousands of continuous switching
Safety Protection：
Comply with ISO 13849-1 international safety standard
Safety Relays
Double loop
Surge protection
AC voltage detection
Water flow detection
Leak detection
Applications：
Automotive welding
Application Industry：
1. Adjusted independently power of center spot and ring spot
2. Spatter-free welding
3. Stable weld formation and good consistency
4. Larger and stable molten, smaller temperature gradient
