D28mm laser cutting ceramic precitec WXS fiber laser ceramic laser nozzle holder

D28mm laser cutting ceramic precitec WXS fiber laser ceramic laser nozzle holder
Availability:
Quantity:
Inquire Add to Basket

Product Description

D28mm laser cutting ceramic precitec WXS fiber laser ceramic laser nozzle holder


Products Description：

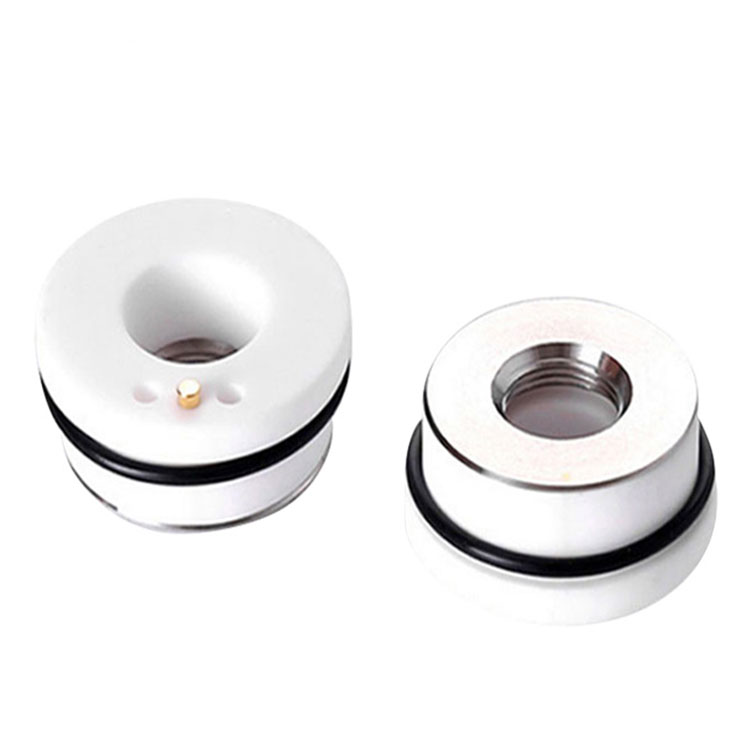

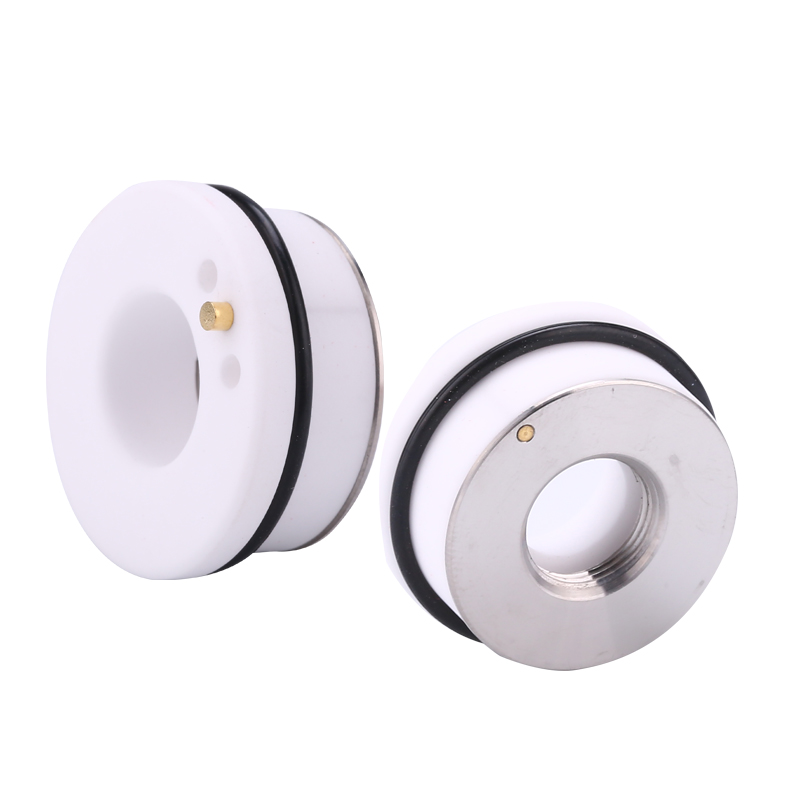

Dia. 28mm Precitec WSX Fiber Laser Ceramic Rings
Application: For Precitec WSX fiber laser cutting machine
Product Features：
1.  Fully processed zirconia ceramics, high coaxial accuracy, excellent heat resistance, insulation and fragility.
2.  Gold-plated copper needles, Excellent conductivity.
3. High temperature resistant and anti-aging sealing ring.
4.  Electrode adopts welding riveting process, reliable contact.
5.  Special alloy sheet with high surface finish and smooth airflow without deformation.

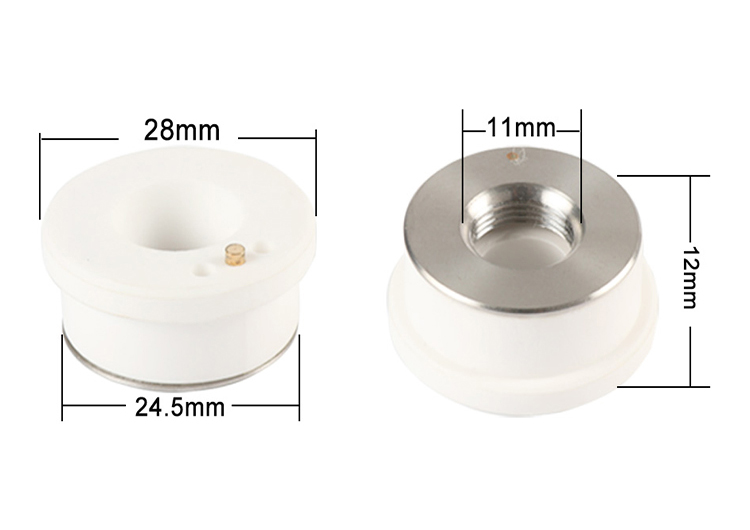

Product size
Product Paramenters：
Type
Type A (Precitec  WSX)
Large head diameter
28mm
Small head diameter
24.5mm
Thickness
12mm
Screw tooth
M11

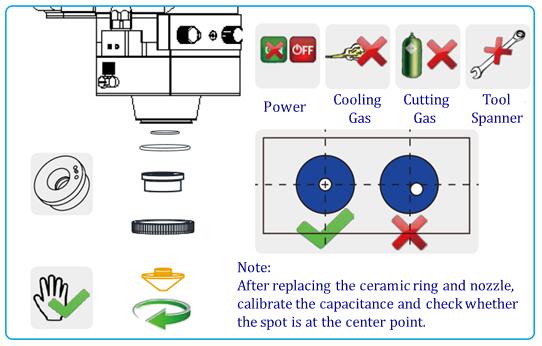

Installation Instructions：

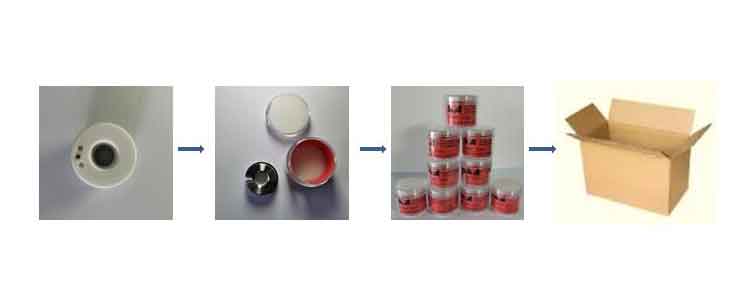

Packaging Process：
