| Connector Type: QBH | Wobble Range: 100*100mm ； 120*160mm |
| Applicable Wavelength: 1080±10nm | Wobble Speed: 4000mm/s |
| Laser Power: ≤2KW | Blowing Way:Airknife Crossjet |
| Collimation Length: 100mm | Gas Pressure: ≤1Mpa |
| Focus Length: F255、F350 | Net Weight: 6.13kG (exclude fieldlens) |
| Model | LDW200 |
| Max.Power | 2000W |
| Fiber interface | QBH |
| Collimation | F100/F120/F150 |
| Focusing | F150/F200/F250 |
| Charge Coupled Device (CCD) | 700TVL |
| Max motor speed | 1.5W r/min |
| Spot diameter | 1-3mm |
| Assist gas pressure | 10、15、20、25par |
| Weight | 4.6kg |

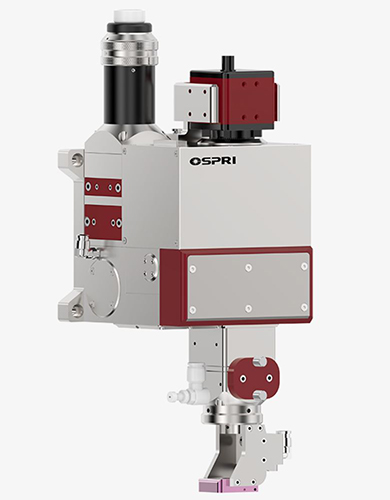

Brief description of product parts：
① Welding head body: realize QBH locking and fine adjustment of beam divergence angle;
② Collimation protection drawer: It can protect the collimation lens and prolong the service life of the protection lens;
③ Collimating lens drawer: the function of converting laser divergent light into parallel light;
④ Focusing mirror drawer: replace the focusing lens to focus parallel light;
⑤ Focus protection mirror drawer: prevent and protect dust from entering the focusing lens;
⑥ Mirror assembly: assist the camera to image and convert the direction of the optical path system;
⑦ Coaxial blowing protective gas component: During laser welding, it can destroy the ionosphere of the laser on the surface of the workpiece, and isolate the contact between the workpiece and the air to prevent the workpiece from being oxidized.
