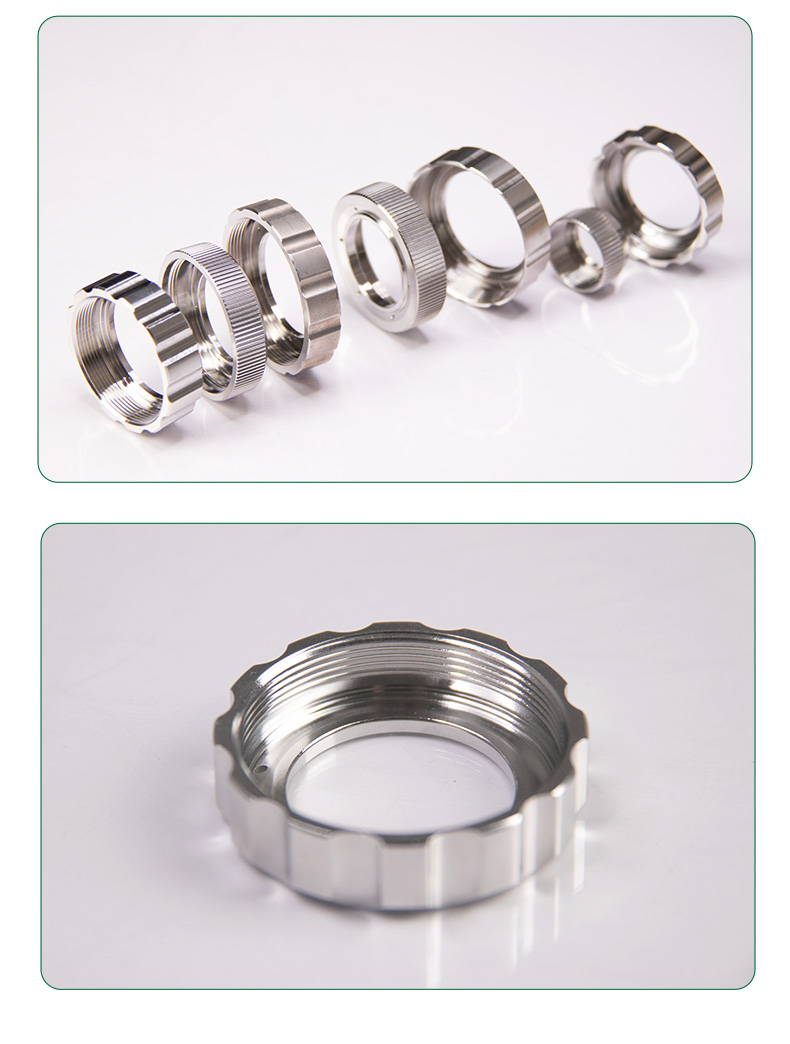

Raytools laser cutting head ceramic rings, locking nuts, fiber ceramic bodies, pressing rings, and nozzle holders:
Function: The ceramic ring is used in the laser cutting head to provide excellent insulation and heat resistance, ensuring stable transmission of the laser beam. It effectively protects the internal components of the cutting head and enhances the precision of laser cutting.
Types: Typically available in various diameters and thread specifications to fit different models of laser cutting machines.
Function: The locking nut is used to secure the ceramic ring and other components of the cutting head, ensuring that parts remain tight and stable during cutting operations. This is crucial for maintaining the stability of the cutting head.
Material: Generally made from high-temperature resistant and corrosion-resistant materials to ensure durability in the laser cutting environment.
Function: The fiber ceramic body is designed to guide the laser beam and protect the fiber from heat and mechanical stress. It is a vital component of fiber laser cutting systems, ensuring efficient transmission of the laser beam.
Advantages: Exhibits good wear resistance and high-temperature stability, capable of withstanding extreme conditions during the laser cutting process.
Function: The pressing ring applies uniform pressure to the nozzle and other components to ensure a good seal and stability. This helps improve cutting quality and reduces gas leakage.
Applicability: The shape and size of the pressing ring may vary depending on different designs of cutting heads.
Function: The nozzle holder secures the nozzle in place, ensuring its position remains stable during cutting operations. It prevents the nozzle from moving due to heat or vibrations, thus guaranteeing accuracy and consistency in cutting.
Material: Typically made from high-temperature resistant materials to suit the working environment of laser cutting machines.

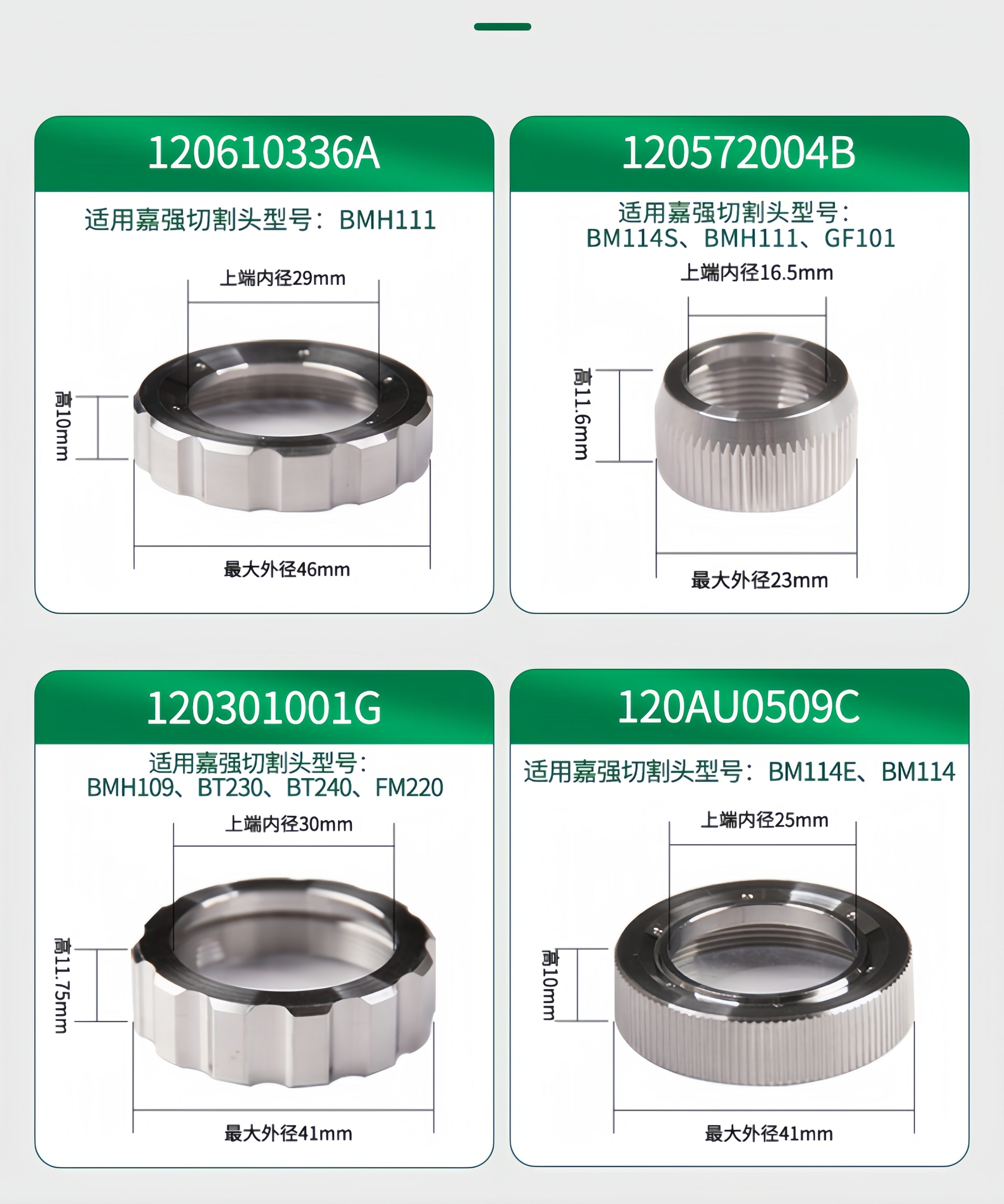

ceramic body locking rings, nozzle holders, and locking rings specifications:
Component | Model Number | Dimensions (mm) | Description |
---|---|---|---|
Ceramic Body Locking Ring | 120A61005C | 44.5 x 30 x 11.7 | Locking ring for securing ceramic bodies in laser cutting heads. |
Ceramic Body Locking Ring | 120AU0509A | 41 x 25 x 10 | Compact locking ring designed for specific ceramic bodies. |
Nozzle Holder | 120AU0509C | 41 x 25 x 10 | Nozzle holder providing stability and pressure for cutting nozzles. |
Nozzle Holder | 120301001G | 41 x 30 x 11.75 | Larger nozzle holder ensuring secure placement and performance. |
Nozzle Holder | 120572004B | 23 x 16.5 x 11.6 | Smaller nozzle holder suitable for compact cutting heads. |
Nozzle Holder | 120610336A | 46 x 29 x 10 | Mid-sized nozzle holder for versatile applications in laser cutting. |
BD08K Locking Ring | 120D80407A | - | Locking ring specifically designed for the BD08K series. |
BS12K Locking Ring | 120BS0193B | - | Locking ring for the BS12K series, ensuring component stability. |
Locking Ring | XP.JSJ04.0651 | - | General locking ring compatible with various applications. |
