WSX Fiber Laser Welding Head with CCD Camera And Output Beam ND26 for 2KW

Regular welding head ND26 2000W Fiber laser welding head
Availability:
Quantity:
Inquire Add to Basket

  • ND26

  • WSX

Product Description

WSX fiber laser welding head with CCD camera and Output beam ND26

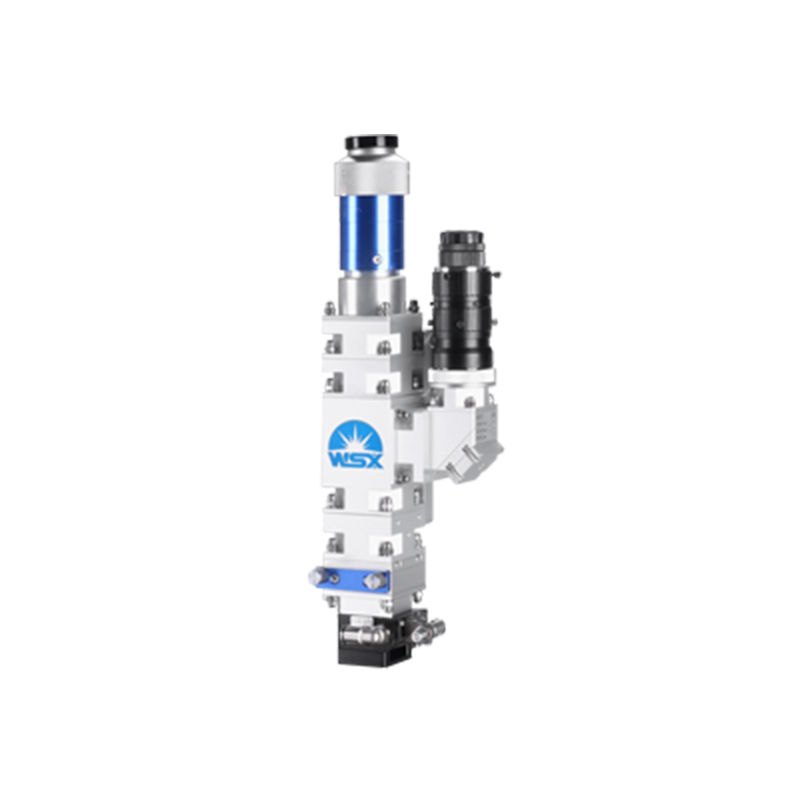

WSX Fiber Laser Welding Head ND 26 with CCD Camera for 2KW

Product Paramenters：

Model
ND26
Max.Power
2000W
Fiber interface
QBH
Collimation
D30F75/F100/F150
Focusing
D30/F150/F200/F250
Charge Coupled Device (CCD)
700TVL
Assist gas pressure
10、15、20、25par
Weight
3.2kg



Application

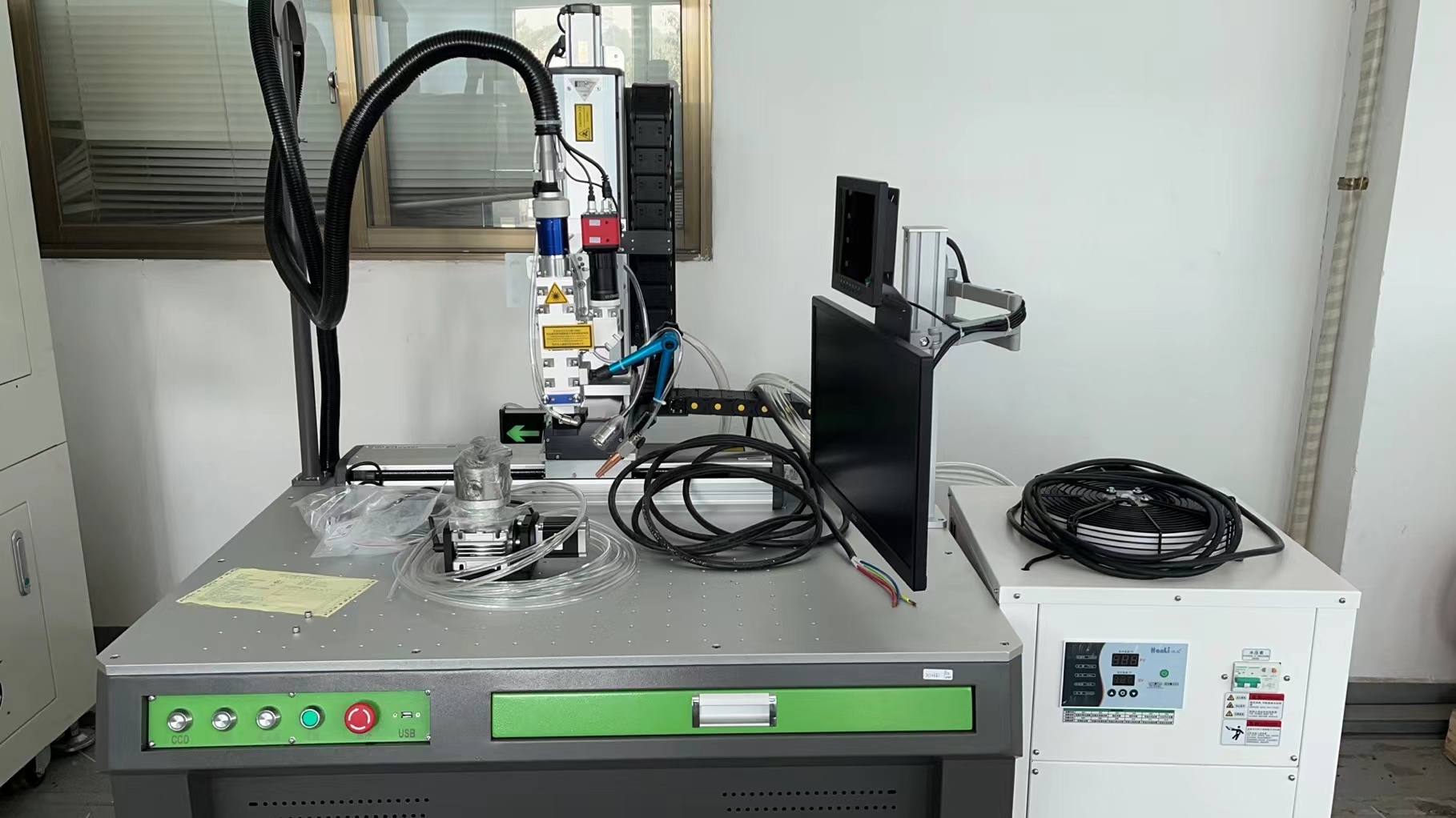

ND26 Fiber laser welding head 1KW auto welding machine



Sheet metal processing
Metal parts
Handcrafted gift
Car parts
Building structure
Kitchenware bathroom
