Raytools Sealing Rings, Protective Lenses, and Spring Seals for Laser Cutting Heads
1. Overview:Raytools provides high-quality sealing rings, protective lenses, and spring seals designed specifically for laser cutting heads. These components are crucial for ensuring optimal performance, protection, and durability of laser cutting systems.
2. Key Components:
Sealing Rings:
Function: Sealing rings are designed to prevent dust, smoke, and other contaminants from entering the laser cutting head. This ensures that the internal components remain clean and functional.
Material: Made from high-quality elastomers or other durable materials to withstand the harsh operating conditions of laser cutting environments.
Benefits: Help to maintain a clean optical path, thereby improving cutting accuracy and reducing maintenance frequency.
| External Diameter (mm) | Width (mm) | Thickness (mm) | Part Number |
| 42.5 | 4 | 3.2 | 11021M2110005 |
| 32.2 | 24 | 3.55 | 11021M2110007 |
| 29.2 | 21 | 3.55 | 11021M2110051 |
| 35.5 | 27.7 | 3.2 | 11021M21260057 |
| 41.2 | 33.4 | 3.2 | 11021M21210058 |
| 51.2 | 43.2 | 3.55 | 11021M2110009 |
| 29.2 | 23 | 3.1 | 11021M21260064 |
| 34.5 | 4 | 3.6 | 3090010091 |
| 30 | 1.8 | HR70, D30 - 2 pcs | Nitrile Rubber O-Ring 11021MA120066 |
| 16.5 | 1.8 | HR70 - Brown | Fluorine Rubber O-Ring 11021MA3D20182 |
| 55.2 | 4 | 3.4 | 11021M2110006 |
| 30 | 3 | 2.2 | 3090010111 |
| 54.5 | 4 | 3.5 | UPE 11021M2110008 |
| Screw | N/A | N/A | 11026AAA139I0087 |
Protective Lenses:
Function: Protective lenses shield the laser optics from damage caused by debris and high temperatures. They are crucial for maintaining laser beam quality.
Coating: Many Raytools protective lenses feature anti-reflective coatings to enhance transmission and minimize damage from laser exposure.
Benefits: Prevents degradation of the laser beam, leading to more efficient cutting and longer lifespan for the cutting head.

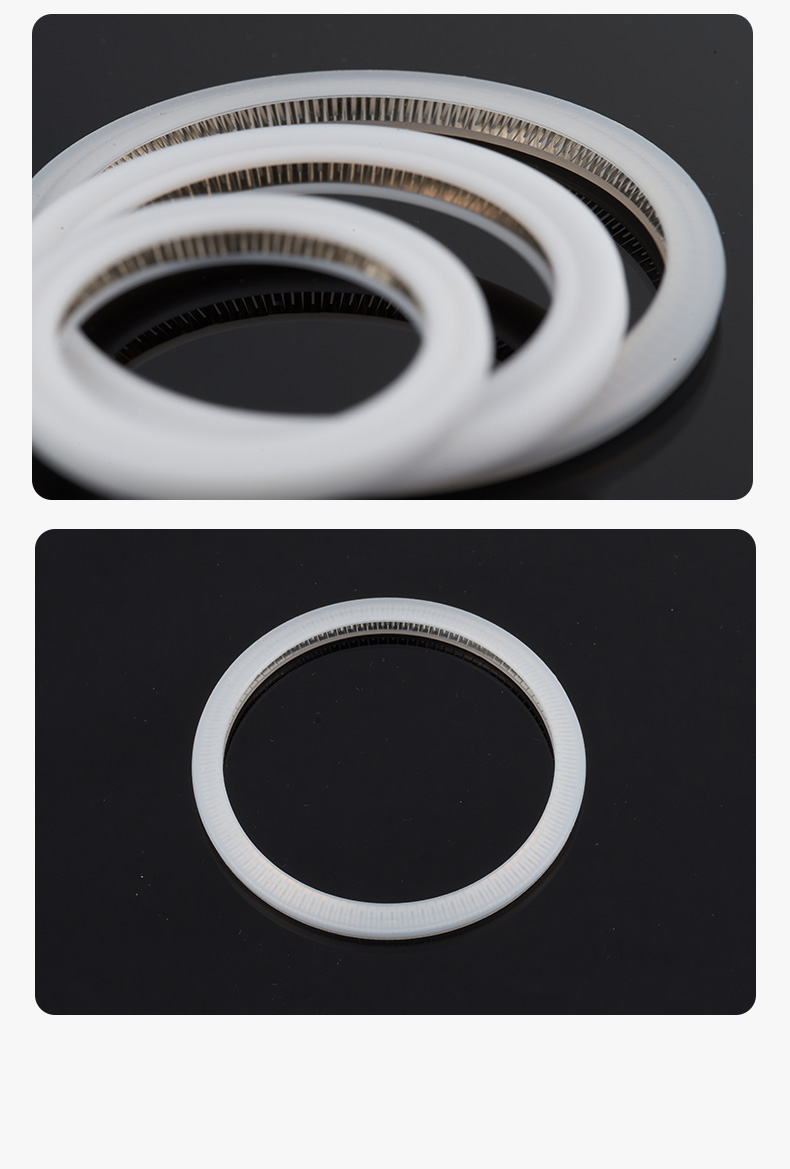

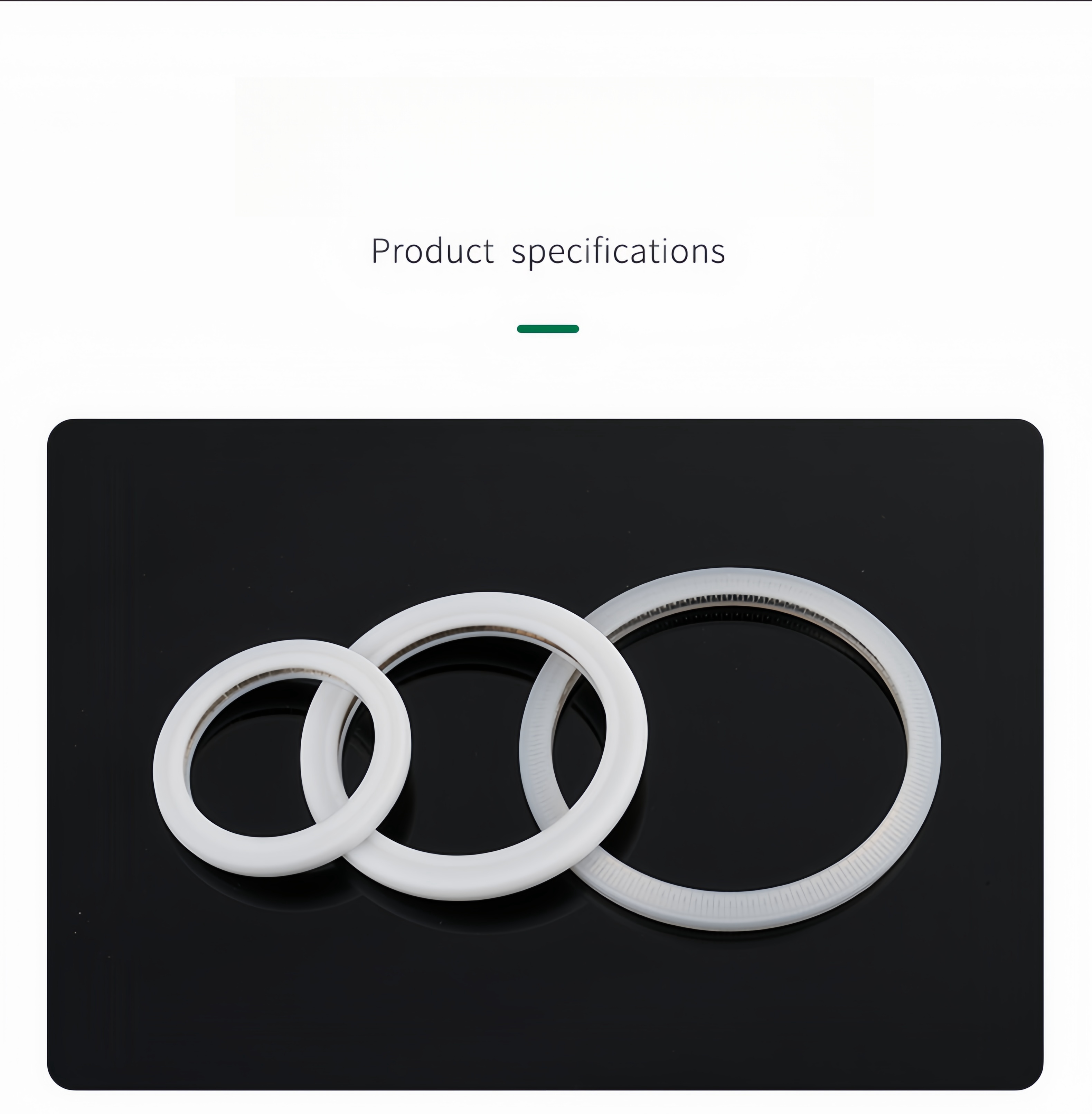

Spring Seals:
Function: Spring seals provide a flexible and reliable sealing solution around the laser cutting head, ensuring a tight fit that prevents contaminants from entering.
Design: The spring mechanism allows for adaptation to slight variations in positioning, maintaining an effective seal.
Benefits: Enhances the overall durability of the cutting head by protecting sensitive internal components from dust and particles.
3. Benefits of Raytools Components:
Enhanced Durability: Using Raytools' protective components significantly extends the lifespan of laser cutting heads, reducing the need for frequent replacements.
Improved Cutting Quality: Keeping optics clean and free from contaminants ensures high precision and quality in cutting operations.
Cost-Effective Maintenance: The effective sealing reduces cleaning and maintenance requirements, ultimately lowering operational costs.
4. Applications:Raytools sealing rings, protective lenses, and spring seals are utilized in various industries, including:
5. Conclusion:Investing in Raytools' sealing rings, protective lenses, and spring seals is essential for businesses utilizing laser cutting technology. These components ensure optimal performance, extend the life of cutting heads, and improve the overall quality of laser cutting operations, leading to increased efficiency and productivity.
